Electric Lift Motor
OVERVIEW

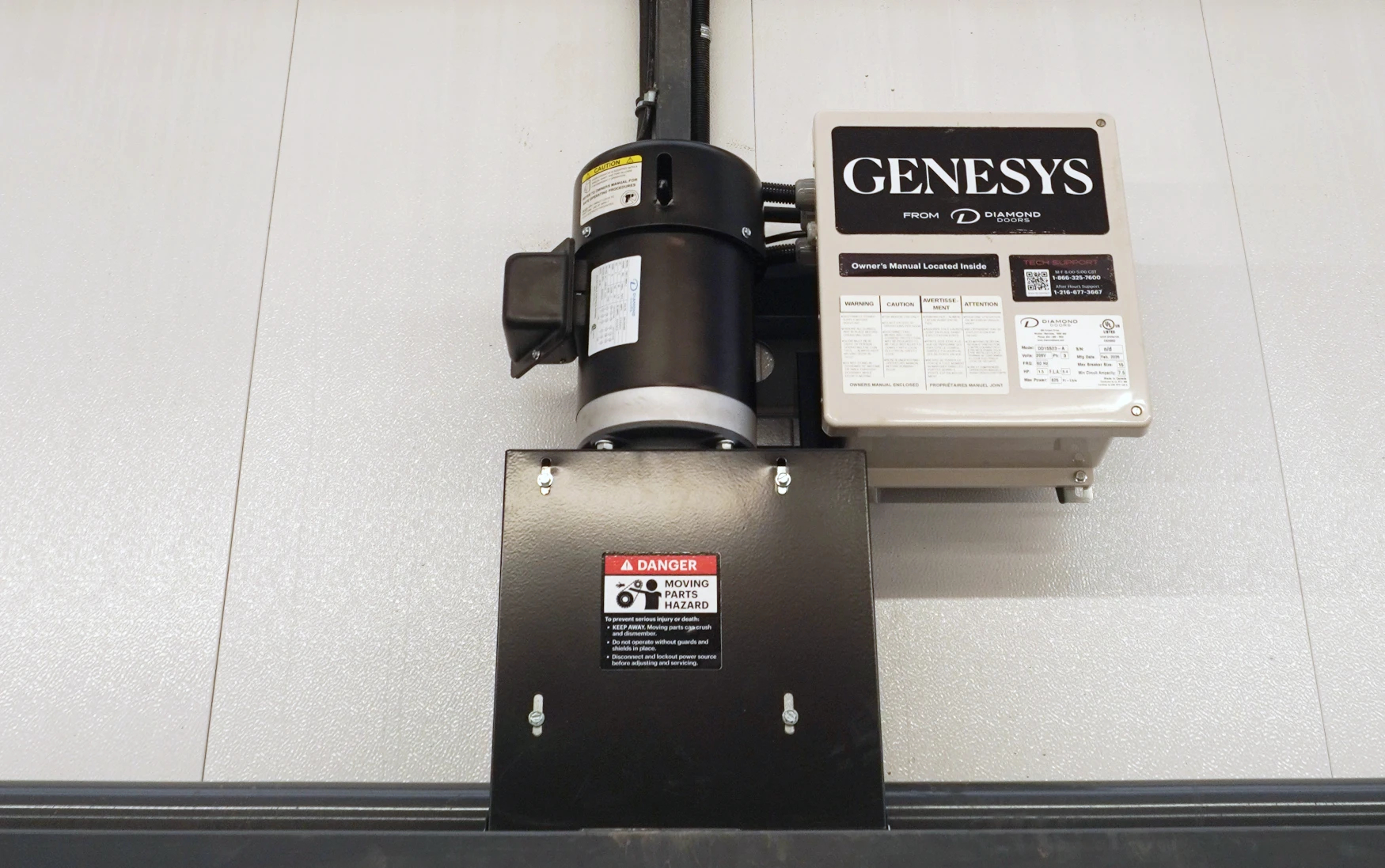

Every Diamond door comes standard with an electric lifting motor. This electric motor is coupled to the industrial grade gearbox, creating a reliable electric lifting system.
The motor size is determined by door weight, door size, and opener speed required. We ensure our motors are paired to the gearbox specifications. Motor size and power should be aligned with gearbox specifications to ensure the gearbox is not under strain.
Our electric motors are available in single phase 230V, 3 phase 208V, and 3 phase 460V.
All electric motors are coupled to an electric brake to ensure safety. The brake is equipped with a lever to disengage the brake for manual operation. If the power is cut to the door, the brake is automatically engaged. This means you can trust your door to stay in the open position during a power outage.
TECHNICAL SPECS
Motor Sizes: 3/4HP, 1HP, 1.5HP, 2HP, 3HP, 5HP, and 7.5HP.
Motor Voltage: Single Phase 230V, 3 Phase 208V, and 3 Phase 460V. 60Hz.
Motor Type: AC Induction Brakemotor
Motor Classification: TENV
FAQ
WARRANTY
The entire door is free of manufacturing defects in material and workmanship for a period of two years.
The door will not warp, crack, or buckle under normal intended use as a door.
