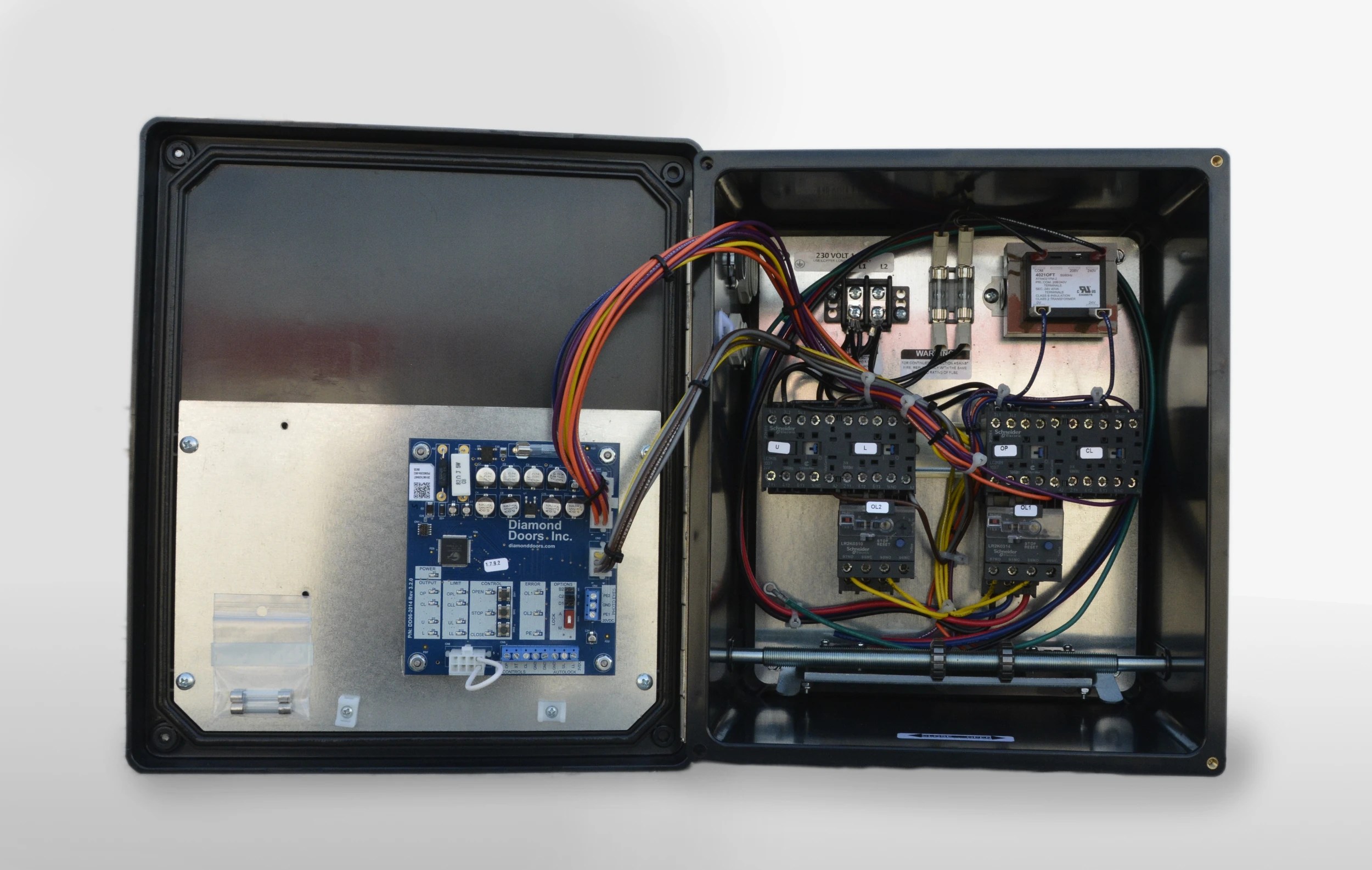

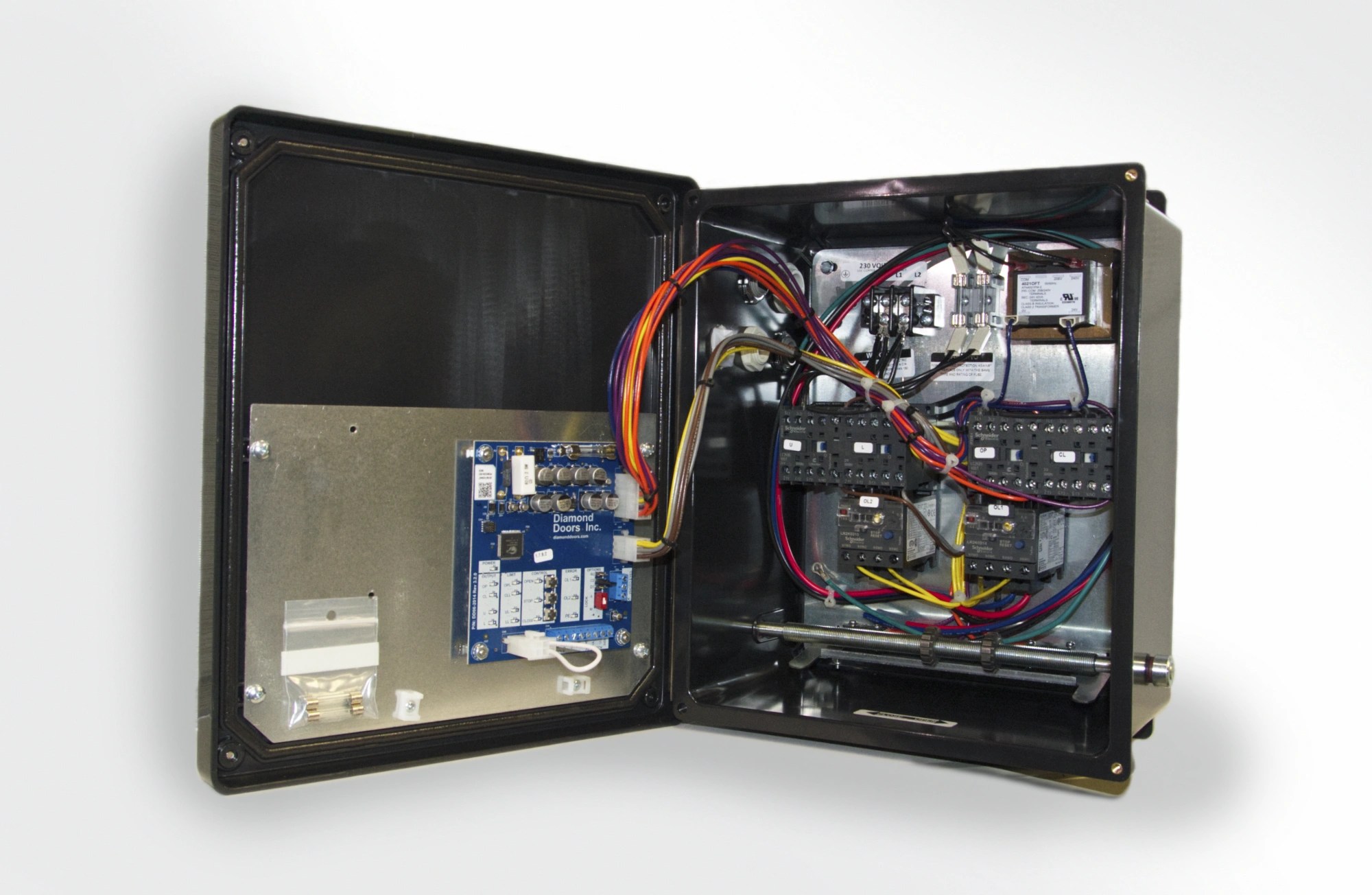

Genesys Electrical Box

OVERVIEW

The Genesys electrical box controls the operation of the bifold door, connecting the up/down/stop controller to the bifold door motor. It includes open-close limit switches, thermal overloads, fuses, and our innovative circuit board.

The circuit board is the center of it all. It offers on-board diagnostics, plug-n-play installation on future door upgrades, built in emergency overrides, and other features that make the Diamond door a convenient door option.

The open-close limit switches determine how far the door opens and closes. We pre-set the closed limit switch in-factory, while the open limit switch requires its final adjustments once the door is installed. These instructions can be found in the electrical manual.

Thermal overloads provide protection for the door’s electrical components. If the overloads detect a large amperage draw, they cut off the power to the door to avoid damage. These overloads automatically reset within 30 seconds if an overload occurs.

We install the wiring and electrical components for your door in-factory, including a junction box at the top of the door. This makes connecting to your building’s electrical system hassle-free. Diamond doors require no onsite electrical connections on the door frame and you can get your door up and running quickly and efficiently.

The Genesys electrical box can be connected to single phase 230V, three phase 208V, and three phase 460V, depending on the electrical power available on your building site.

Rating and Certifications

The Genesys electrical box is UL325 certified, meaning that is certified for use in commercial applications. Our electrical box itself meets NEMA 4/4X/12 and IP64 specifications, protecting the electrical components inside from dust and water damage.
