Polycarbonate Sheeting
OVERVIEW
Diamond Doors offers two types of Polycarbonate Sheeting, Therma Vu (30mm) and Diamond Vu (10mm). The Polycarbonate Sheeting is one of our options to allow natural light to penetrate through the door into the building. They are translucent, therefore let only a percentage of the light in. This is a great option for dimly lit shops or applications that require privacy from passersby.
We have polycarbonate options for both insulated and non-insulated buildings. The Therma Vu polycarbonate is great for insulated building applications. It is also fire rated. The Therma Vu sheeting is available in two colours, clear and smoked (grey). Our Diamond Vu polycarbonate sheeting is great for non-insulated buildings. Both panel types are equipped with a protective coating that prevents UV damage and discolouration.
For easy installation, the Therma Vu sheets snap together much like a tongue-and-groove joint connection. They can be cut to size or purchased by the sheet.
TECHNICAL SPECS

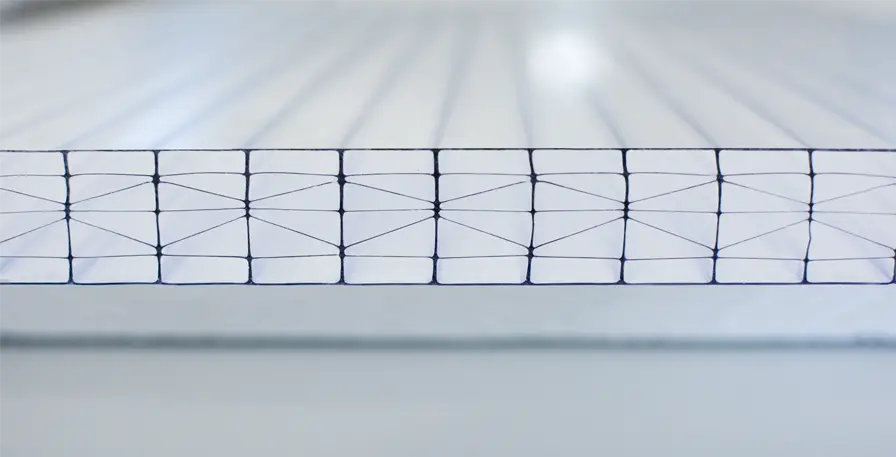

Therma Vu
Internal Structure: 8 Wall
Panel Coverage: 21” wide 12’ long / cut to size
Thickness: 30 mm
Weight: 3.6 Kg/m
Light Transmission (Clear): 50%-56%
Light Transmission (Smoked): 15%-30%
U-value: 1.3W/m².K
Tensile Strength: >60Mpa
Fire Rating: B1

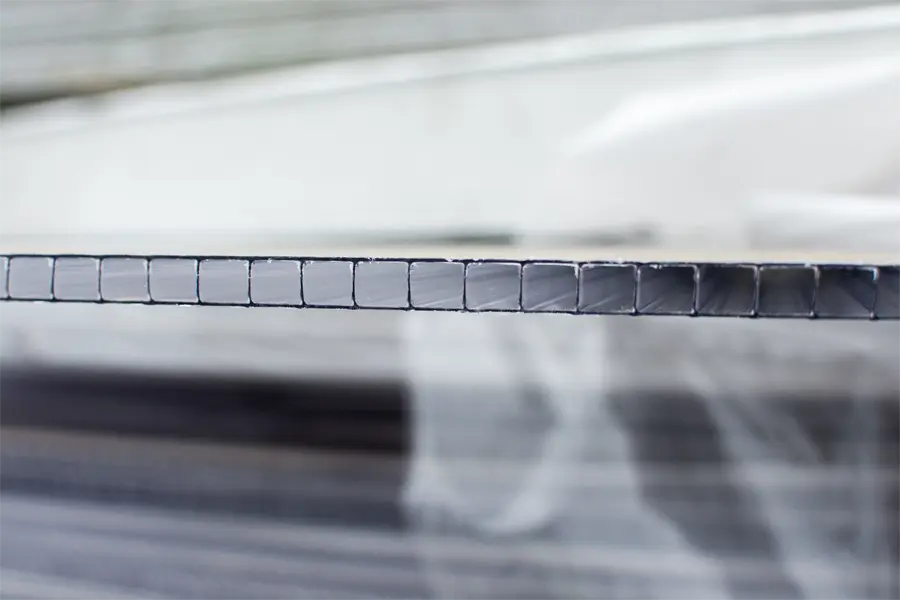

Diamond Vu
Internal Structure: Twin Wall
Panel Coverage: 21′ wide 12’ long / cut to size
Thickness: 10 mm
Light Transmission (clear): 88%
U-value: 3.2W/m².K
FAQ
WARRANTY
The door is free of manufacturing defects in material and workmanship for a period of two years.
The door will not warp, crack, or buckle under normal intended use as a door.
